import numpy as np
import zarr
import moraine.cli as mc
from moraine.utils_ import is_cuda_available
if is_cuda_available():
import cupy as cp
from matplotlib import pyplot as pltpqm
Pixel Quality Metrics
temp_coh
temp_coh (intf:str, rslc:str, t_coh:str=None, image_pairs:numpy.ndarray=None, chunks:int|tuple[int,int]=None, cuda:bool=False, processes=None, n_workers=None, threads_per_worker=None, rmm_pool_size=0.9, **dask_cluster_arg)
temporal coherence.
| Type | Default | Details | |
|---|---|---|---|
| intf | str | complex interferograms/coherence metrix, dtype complex64, shape 2D(pc) or 3D(ras) | |
| rslc | str | complex rslc/phase history, dtype complex64, shape 2D(pc) or 3D(ras) | |
| t_coh | str | None | output, temporal coherence |
| image_pairs | ndarray | None | image pairs |
| chunks | int | tuple[int, int] | None | ras/pc chunk size, same as intf by default |
| cuda | bool | False | if use cuda for processing, false by default |
| processes | NoneType | None | use process for dask worker over thread, the default is False for cpu, only applied if cuda==False |
| n_workers | NoneType | None | number of dask worker, the default is 1 for cpu, number of GPU for cuda |
| threads_per_worker | NoneType | None | number of threads per dask worker, the default is 2 for cpu, only applied if cuda==False |
| rmm_pool_size | float | 0.9 | set the rmm pool size, only applied when cuda==True |
| dask_cluster_arg | VAR_KEYWORD |
CLI version of temp_coh.
logger = mc.get_logger()ds_can_coh = './co/ds_can_coh.zarr'
ds_can_ph = './pl/ds_can_ph.zarr'
ds_can_t_coh = './pqm/ds_can_t_coh.zarr'temp_coh(ds_can_coh,ds_can_ph, ds_can_t_coh)2025-09-20 23:15:04 - log_args - INFO - running function: temp_coh
2025-09-20 23:15:04 - log_args - INFO - fetching args:
2025-09-20 23:15:04 - log_args - INFO - intf = './co/ds_can_coh.zarr'
2025-09-20 23:15:04 - log_args - INFO - rslc = './pl/ds_can_ph.zarr'
2025-09-20 23:15:04 - log_args - INFO - t_coh = './pqm/ds_can_t_coh.zarr'
2025-09-20 23:15:04 - log_args - INFO - image_pairs = None
2025-09-20 23:15:04 - log_args - INFO - chunks = None
2025-09-20 23:15:04 - log_args - INFO - cuda = False
2025-09-20 23:15:04 - log_args - INFO - processes = None
2025-09-20 23:15:04 - log_args - INFO - n_workers = None
2025-09-20 23:15:04 - log_args - INFO - threads_per_worker = None
2025-09-20 23:15:04 - log_args - INFO - rmm_pool_size = 0.9
2025-09-20 23:15:04 - log_args - INFO - dask_cluster_arg = {}
2025-09-20 23:15:04 - log_args - INFO - fetching args done.
2025-09-20 23:15:04 - zarr_info - INFO - ./co/ds_can_coh.zarr zarray shape, chunks, dtype: (732727, 136), (100000, 1), complex64
2025-09-20 23:15:04 - zarr_info - INFO - ./pl/ds_can_ph.zarr zarray shape, chunks, dtype: (732727, 17), (100000, 1), complex64
2025-09-20 23:15:04 - temp_coh - INFO - starting dask local cluster.
2025-09-20 23:15:06 - temp_coh - INFO - dask local cluster started.
2025-09-20 23:15:06 - dask_cluster_info - INFO - dask cluster: LocalCluster(dashboard_link='http://10.211.48.10:8787/status', workers=1, threads=1, memory=1.95 TiB)
2025-09-20 23:15:06 - darr_info - INFO - intf dask array shape, chunksize, dtype: (732727, 136), (100000, 136), complex64
2025-09-20 23:15:06 - darr_info - INFO - rslc dask array shape, chunksize, dtype: (732727, 17), (100000, 17), complex64
2025-09-20 23:15:06 - temp_coh - INFO - Estimate temporal coherence for DS.
2025-09-20 23:15:06 - temp_coh - INFO - got temporal coherence t_coh.
2025-09-20 23:15:06 - darr_info - INFO - t_coh dask array shape, chunksize, dtype: (732727,), (100000,), float32
2025-09-20 23:15:06 - temp_coh - INFO - saving t_coh.
2025-09-20 23:15:06 - temp_coh - INFO - computing graph setted. doing all the computing.
2025-09-20 23:15:08 - temp_coh - INFO - computing finished. | 2.6s
2025-09-20 23:15:08 - temp_coh - INFO - dask cluster closed.if is_cuda_available():
temp_coh(ds_can_coh,ds_can_ph, ds_can_t_coh,cuda=True)2025-09-20 23:15:08 - log_args - INFO - running function: temp_coh
2025-09-20 23:15:08 - log_args - INFO - fetching args:
2025-09-20 23:15:08 - log_args - INFO - intf = './co/ds_can_coh.zarr'
2025-09-20 23:15:08 - log_args - INFO - rslc = './pl/ds_can_ph.zarr'
2025-09-20 23:15:08 - log_args - INFO - t_coh = './pqm/ds_can_t_coh.zarr'
2025-09-20 23:15:08 - log_args - INFO - image_pairs = None
2025-09-20 23:15:08 - log_args - INFO - chunks = None
2025-09-20 23:15:08 - log_args - INFO - cuda = True
2025-09-20 23:15:08 - log_args - INFO - processes = None
2025-09-20 23:15:08 - log_args - INFO - n_workers = None
2025-09-20 23:15:08 - log_args - INFO - threads_per_worker = None
2025-09-20 23:15:08 - log_args - INFO - rmm_pool_size = 0.9
2025-09-20 23:15:08 - log_args - INFO - dask_cluster_arg = {}
2025-09-20 23:15:08 - log_args - INFO - fetching args done.
2025-09-20 23:15:08 - zarr_info - INFO - ./co/ds_can_coh.zarr zarray shape, chunks, dtype: (732727, 136), (100000, 1), complex64
2025-09-20 23:15:08 - zarr_info - INFO - ./pl/ds_can_ph.zarr zarray shape, chunks, dtype: (732727, 17), (100000, 1), complex64
2025-09-20 23:15:08 - temp_coh - INFO - starting dask local cluster.
2025-09-20 23:15:15 - temp_coh - INFO - dask local cluster started.
2025-09-20 23:15:15 - dask_cluster_info - INFO - dask cluster: LocalCUDACluster(dashboard_link='http://127.0.0.1:8787/status', workers=8, threads=8, memory=1.95 TiB)
2025-09-20 23:15:15 - darr_info - INFO - intf dask array shape, chunksize, dtype: (732727, 136), (100000, 136), complex64
2025-09-20 23:15:15 - darr_info - INFO - rslc dask array shape, chunksize, dtype: (732727, 17), (100000, 17), complex64
2025-09-20 23:15:15 - temp_coh - INFO - Estimate temporal coherence for DS.
2025-09-20 23:15:15 - temp_coh - INFO - got temporal coherence t_coh.
2025-09-20 23:15:15 - darr_info - INFO - t_coh dask array shape, chunksize, dtype: (732727,), (100000,), float32
2025-09-20 23:15:15 - temp_coh - INFO - saving t_coh.
2025-09-20 23:15:15 - temp_coh - INFO - computing graph setted. doing all the computing.
2025-09-20 23:15:16 - temp_coh - INFO - computing finished. | 1.2s
2025-09-20 23:15:18 - temp_coh - INFO - dask cluster closed.ds_can_gix = './shp/ds_can_gix.zarr'
t_coh = './pqm/t_coh.zarr'
rslc_zarr = zarr.open('./raw/rslc.zarr/',mode='r')
mc.pc2ras(ds_can_gix, ds_can_t_coh,t_coh,rslc_zarr.shape[:2])2025-09-20 23:15:18 - log_args - INFO - running function: pc2ras
2025-09-20 23:15:18 - log_args - INFO - fetching args:
2025-09-20 23:15:18 - log_args - INFO - idx = './shp/ds_can_gix.zarr'
2025-09-20 23:15:18 - log_args - INFO - pc = './pqm/ds_can_t_coh.zarr'
2025-09-20 23:15:18 - log_args - INFO - ras = './pqm/t_coh.zarr'
2025-09-20 23:15:18 - log_args - INFO - shape = (2500, 1834)
2025-09-20 23:15:18 - log_args - INFO - chunks = (1000, 1000)
2025-09-20 23:15:18 - log_args - INFO - processes = False
2025-09-20 23:15:18 - log_args - INFO - n_workers = 1
2025-09-20 23:15:18 - log_args - INFO - threads_per_worker = 1
2025-09-20 23:15:18 - log_args - INFO - dask_cluster_arg = {}
2025-09-20 23:15:18 - log_args - INFO - fetching args done.
2025-09-20 23:15:18 - zarr_info - INFO - ./shp/ds_can_gix.zarr zarray shape, chunks, dtype: (732727, 2), (100000, 1), int32
2025-09-20 23:15:18 - pc2ras - INFO - loading gix into memory.
2025-09-20 23:15:18 - pc2ras - INFO - starting dask local cluster.
2025-09-20 23:15:18 - pc2ras - INFO - dask local cluster started.
2025-09-20 23:15:18 - dask_cluster_info - INFO - dask cluster: LocalCluster(dashboard_link='http://10.211.48.10:8787/status', workers=1, threads=1, memory=1.95 TiB)
2025-09-20 23:15:18 - pc2ras - INFO - start to work on ./pqm/ds_can_t_coh.zarr
2025-09-20 23:15:18 - zarr_info - INFO - ./pqm/ds_can_t_coh.zarr zarray shape, chunks, dtype: (732727,), (100000,), float32
2025-09-20 23:15:18 - darr_info - INFO - pc dask array shape, chunksize, dtype: (732727,), (732727,), float32
2025-09-20 23:15:18 - pc2ras - INFO - create ras dask array
2025-09-20 23:15:18 - darr_info - INFO - ras dask array shape, chunksize, dtype: (2500, 1834), (2500, 1834), float32
2025-09-20 23:15:18 - pc2ras - INFO - save ras to ./pqm/t_coh.zarr
2025-09-20 23:15:18 - zarr_info - INFO - ./pqm/t_coh.zarr zarray shape, chunks, dtype: (2500, 1834), (1000, 1000), float32
2025-09-20 23:15:18 - pc2ras - INFO - computing graph setted. doing all the computing.
2025-09-20 23:15:19 - pc2ras - INFO - computing finished.ed | 0.1s
2025-09-20 23:15:19 - pc2ras - INFO - dask cluster closed.t_coh_zarr = zarr.open(t_coh,mode='r')

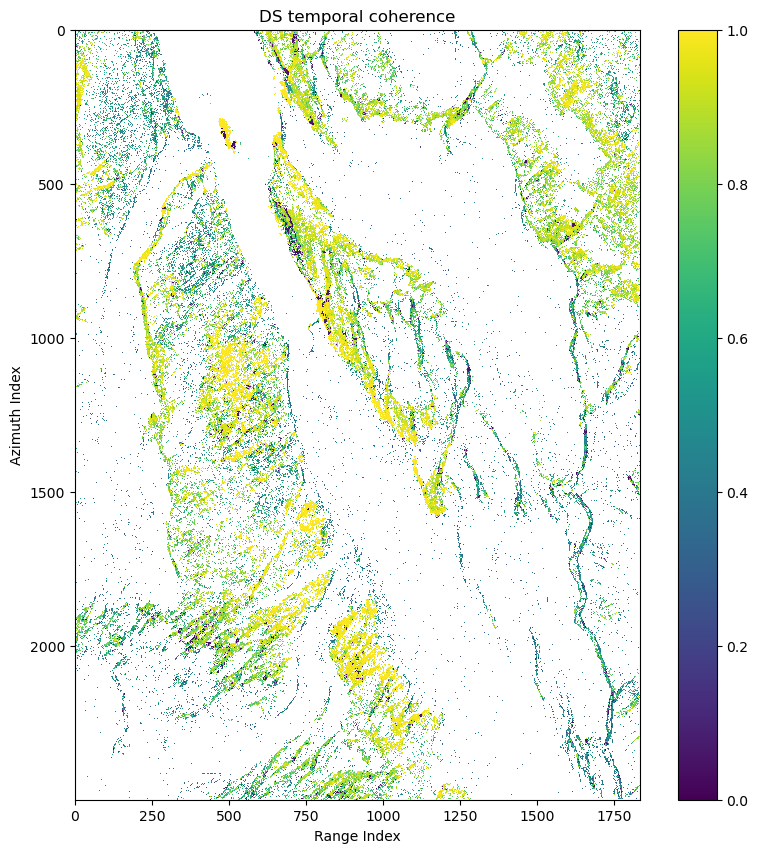

fig, ax = plt.subplots(1,1,figsize=(10,10))
pcm = ax.imshow(t_coh_zarr[:],interpolation='nearest',vmin=0.0,vmax=1.0)
ax.set(title='DS temporal coherence',xlabel='Range Index',ylabel='Azimuth Index')
fig.colorbar(pcm)
plt.show()
Or with raster data:
rslc = 'raw/rslc.zarr/'
intf = 'dl/n2f_intf.zarr'
tcoh = 'pqm/n2f_tcoh.zarr'
tnet = mr.TempNet.from_bandwidth(zarr.open(rslc,mode='r').shape[-1],1)temp_coh(intf,rslc,tcoh,image_pairs=tnet.image_pairs)2025-09-20 23:15:19 - log_args - INFO - running function: temp_coh
2025-09-20 23:15:19 - log_args - INFO - fetching args:
2025-09-20 23:15:19 - log_args - INFO - intf = 'dl/n2f_intf.zarr'
2025-09-20 23:15:19 - log_args - INFO - rslc = 'raw/rslc.zarr/'
2025-09-20 23:15:19 - log_args - INFO - t_coh = 'pqm/n2f_tcoh.zarr'
2025-09-20 23:15:19 - log_args - INFO - image_pairs = array([[ 0, 1],
[ 1, 2],
[ 2, 3],
[ 3, 4],
[ 4, 5],
[ 5, 6],
[ 6, 7],
[ 7, 8],
[ 8, 9],
[ 9, 10],
[10, 11],
[11, 12],
[12, 13],
[13, 14],
[14, 15],
[15, 16]], dtype=int32)
2025-09-20 23:15:19 - log_args - INFO - chunks = None
2025-09-20 23:15:19 - log_args - INFO - cuda = False
2025-09-20 23:15:19 - log_args - INFO - processes = None
2025-09-20 23:15:19 - log_args - INFO - n_workers = None
2025-09-20 23:15:19 - log_args - INFO - threads_per_worker = None
2025-09-20 23:15:19 - log_args - INFO - rmm_pool_size = 0.9
2025-09-20 23:15:19 - log_args - INFO - dask_cluster_arg = {}
2025-09-20 23:15:19 - log_args - INFO - fetching args done.
2025-09-20 23:15:19 - zarr_info - INFO - dl/n2f_intf.zarr zarray shape, chunks, dtype: (2500, 1834, 16), (1000, 1000, 1), complex64
2025-09-20 23:15:19 - zarr_info - INFO - raw/rslc.zarr/ zarray shape, chunks, dtype: (2500, 1834, 17), (1000, 1000, 1), complex64
2025-09-20 23:15:19 - temp_coh - INFO - starting dask local cluster.
2025-09-20 23:15:19 - temp_coh - INFO - dask local cluster started.
2025-09-20 23:15:19 - dask_cluster_info - INFO - dask cluster: LocalCluster(dashboard_link='http://10.211.48.10:8787/status', workers=1, threads=1, memory=1.95 TiB)
2025-09-20 23:15:19 - darr_info - INFO - intf dask array shape, chunksize, dtype: (2500, 1834, 16), (1000, 1000, 16), complex64
2025-09-20 23:15:19 - darr_info - INFO - rslc dask array shape, chunksize, dtype: (2500, 1834, 17), (1000, 1000, 17), complex64
2025-09-20 23:15:19 - temp_coh - INFO - Estimate temporal coherence for DS.
2025-09-20 23:15:19 - temp_coh - INFO - got temporal coherence t_coh.
2025-09-20 23:15:19 - darr_info - INFO - t_coh dask array shape, chunksize, dtype: (2500, 1834), (1000, 1000), float32
2025-09-20 23:15:19 - temp_coh - INFO - saving t_coh.
2025-09-20 23:15:19 - temp_coh - INFO - computing graph setted. doing all the computing.
2025-09-20 23:15:20 - temp_coh - INFO - computing finished. | 1.1s
2025-09-20 23:15:20 - temp_coh - INFO - dask cluster closed.or with gpu:
if is_cuda_available():
temp_coh(intf,rslc,tcoh,image_pairs=tnet.image_pairs,cuda=True)2025-09-20 23:15:20 - log_args - INFO - running function: temp_coh
2025-09-20 23:15:20 - log_args - INFO - fetching args:
2025-09-20 23:15:20 - log_args - INFO - intf = 'dl/n2f_intf.zarr'
2025-09-20 23:15:20 - log_args - INFO - rslc = 'raw/rslc.zarr/'
2025-09-20 23:15:20 - log_args - INFO - t_coh = 'pqm/n2f_tcoh.zarr'
2025-09-20 23:15:20 - log_args - INFO - image_pairs = array([[ 0, 1],
[ 1, 2],
[ 2, 3],
[ 3, 4],
[ 4, 5],
[ 5, 6],
[ 6, 7],
[ 7, 8],
[ 8, 9],
[ 9, 10],
[10, 11],
[11, 12],
[12, 13],
[13, 14],
[14, 15],
[15, 16]], dtype=int32)
2025-09-20 23:15:20 - log_args - INFO - chunks = None
2025-09-20 23:15:20 - log_args - INFO - cuda = True
2025-09-20 23:15:20 - log_args - INFO - processes = None
2025-09-20 23:15:20 - log_args - INFO - n_workers = None
2025-09-20 23:15:20 - log_args - INFO - threads_per_worker = None
2025-09-20 23:15:20 - log_args - INFO - rmm_pool_size = 0.9
2025-09-20 23:15:20 - log_args - INFO - dask_cluster_arg = {}
2025-09-20 23:15:20 - log_args - INFO - fetching args done.
2025-09-20 23:15:20 - zarr_info - INFO - dl/n2f_intf.zarr zarray shape, chunks, dtype: (2500, 1834, 16), (1000, 1000, 1), complex64
2025-09-20 23:15:20 - zarr_info - INFO - raw/rslc.zarr/ zarray shape, chunks, dtype: (2500, 1834, 17), (1000, 1000, 1), complex64
2025-09-20 23:15:20 - temp_coh - INFO - starting dask local cluster.
2025-09-20 23:15:27 - temp_coh - INFO - dask local cluster started.
2025-09-20 23:15:27 - dask_cluster_info - INFO - dask cluster: LocalCUDACluster(dashboard_link='http://127.0.0.1:8787/status', workers=8, threads=8, memory=1.95 TiB)
2025-09-20 23:15:27 - darr_info - INFO - intf dask array shape, chunksize, dtype: (2500, 1834, 16), (1000, 1000, 16), complex64
2025-09-20 23:15:27 - darr_info - INFO - rslc dask array shape, chunksize, dtype: (2500, 1834, 17), (1000, 1000, 17), complex64
2025-09-20 23:15:27 - temp_coh - INFO - Estimate temporal coherence for DS.
2025-09-20 23:15:27 - temp_coh - INFO - got temporal coherence t_coh.
2025-09-20 23:15:27 - darr_info - INFO - t_coh dask array shape, chunksize, dtype: (2500, 1834), (1000, 1000), float32
2025-09-20 23:15:27 - temp_coh - INFO - saving t_coh.
2025-09-20 23:15:27 - temp_coh - INFO - computing graph setted. doing all the computing.
2025-09-20 23:15:28 - temp_coh - INFO - computing finished. | 1.3s

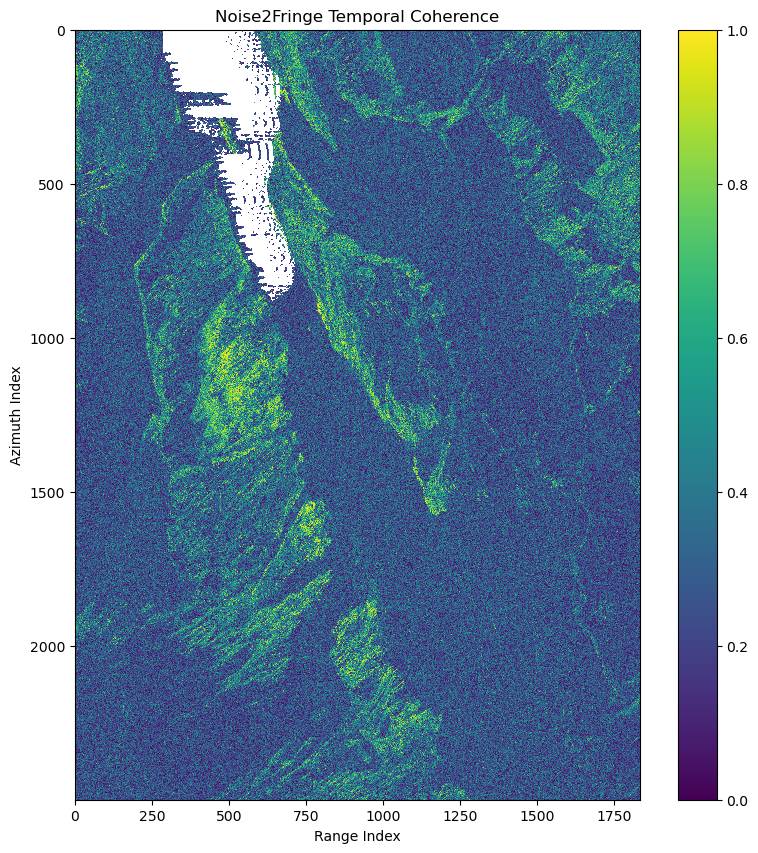

2025-09-20 23:15:30 - temp_coh - INFO - dask cluster closed.fig, ax = plt.subplots(1,1,figsize=(10,10))
pcm = ax.imshow(zarr.open(tcoh,mode='r')[:],interpolation='nearest',vmin=0.0,vmax=1.0)
ax.set(title='Noise2Fringe Temporal Coherence',xlabel='Range Index',ylabel='Azimuth Index')
fig.colorbar(pcm)
fig.show()
